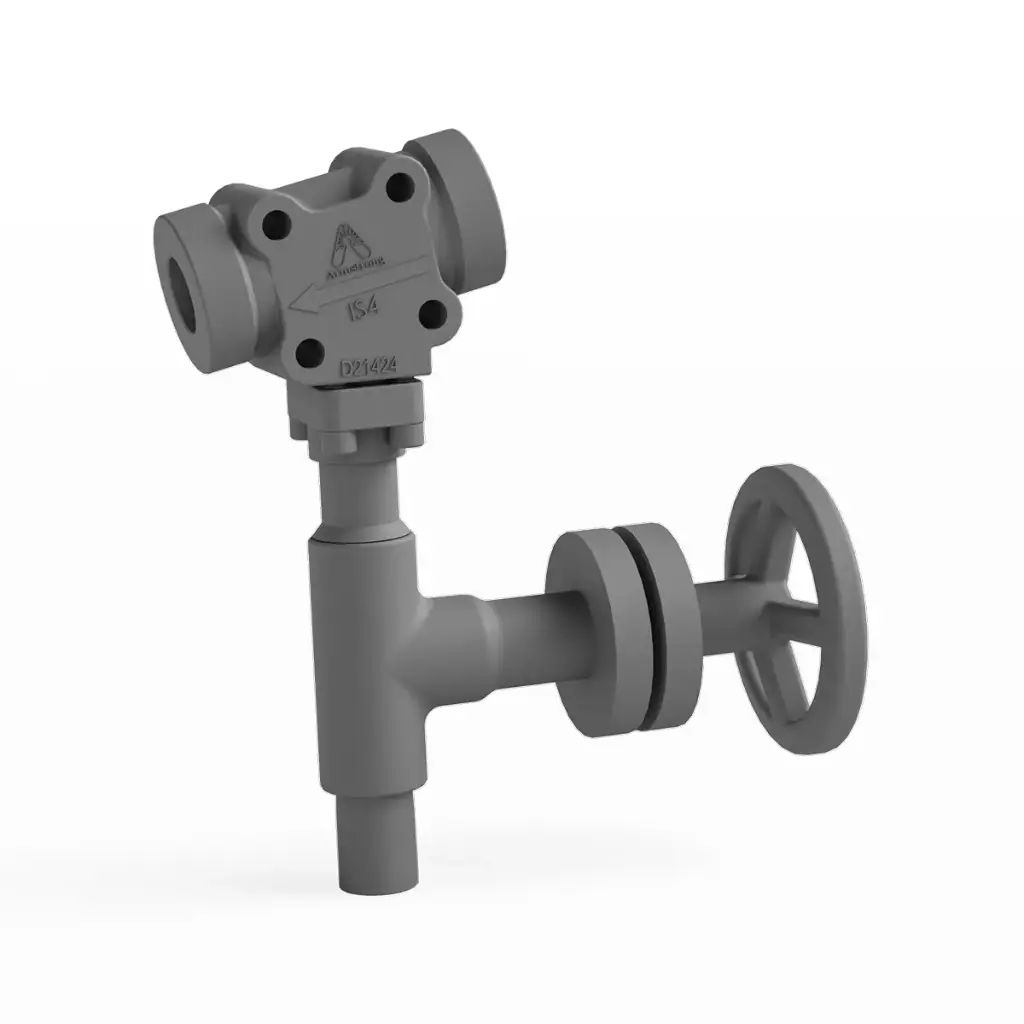

IS-4 Stainless Steel Connector with Integral Strainer (Four Bolt Connector)
The IS-4 Stainless Steel Universal Connector for high pressure and super heat steam lines enables quick and easy access to replace steam traps in critical process applications without disturbing the existing piping.
With the IS-4 Universal Connector, you can install a 4-bolt compatible steam trap to fit most piping configurations and applications. The all stainless steel in-line universal connector with integral strainer combines the integrity of an all welded installation with the versatility of a quick change steam trap replacement.
- Class 900 service for pressures up to 1,245 psig (86 barg)
- All stainless steel construction
- Integral strainer
- Exceptional corrosion resistance
- Recessed gasket surface
- Three-year guarantee against defects in materials and workmanship (connector only)
| Connection Size | 3/4″ (20 mm), 1″ (25 mm) |
| Connection Type | Screwed NPT, SW |
| Flow Direction | Left-Right, Right-Left |
| Connector Styles | with integral strainer, with integral strainer with blowdown valve |
| Brand | Armstrong International Inc. |
